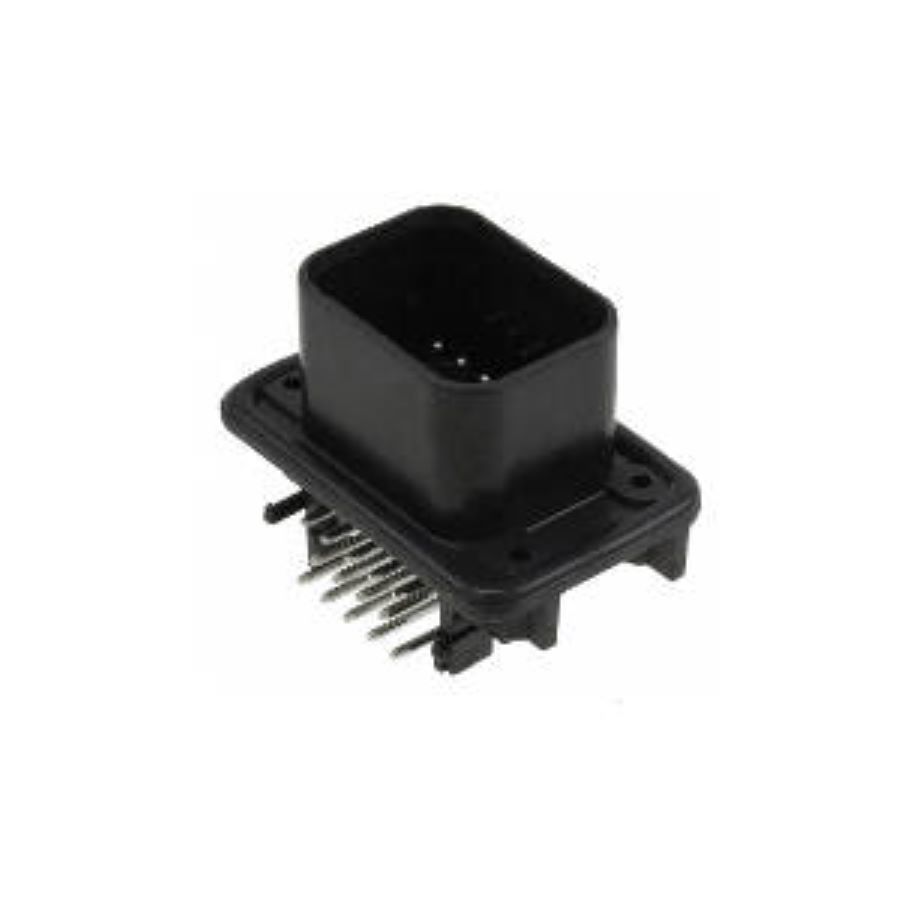

776267-1
Manufacturer:
TE Connectivity
Mfr.Part #:
776267-1
Datasheet:
Description:
D-Sub Connectors Through Hole Number of Positions:14 Solder Male
| Parameter | Value |
|---|---|
| Length | 48.79848 mm |
| Width | 37.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 32.1 mm |
| Packaging | Bulk |
| Depth | 37.9 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.9878 mm |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 14 |
| Tab Width | 1.2954 mm |
| Connector Type | Male Pin |
| Insulation | Insulated |
| Contact Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 3 |
| Row Spacing | 3.9878 mm |
| Housing Material | Polybutylene |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| PCB Thickness | 1.5748 mm |
| Tab Thickness | 1.3 mm |
| Number of Signal Positions | 14 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 479
Distributors
pcbx
pcbxUnit Price$4.08058
Ext.Price$4.08058
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.08058 | $4.08058 |
| 10 | $4.01731 | $40.17310 |
| 25 | $3.94293 | $98.57325 |
| 50 | $3.84118 | $192.05900 |
| 100 | $3.74203 | $374.20300 |
| 300 | $3.23957 | $971.87100 |
| 500 | $2.80458 | $1402.29000 |
| 1000 | $2.42800 | $2428.00000 |
